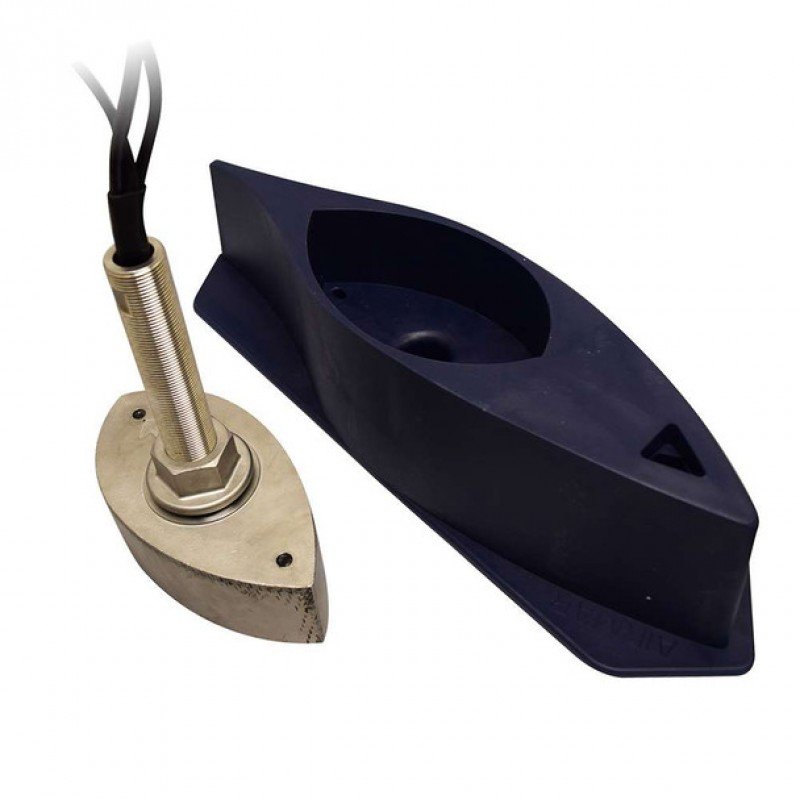

Stainless Steel Combination Thru-Hull

The 165T-50/200-SS260 includes the DFF3D elements along with 50/200 kHz elements and temperature and motion sensors. It can be connected to the DFF3D Multi-Beam Sonar along with one sounder. These transducers save money and space compared to purchasing and installing two separate transducers.

Features:

• Stainless Steel Thru Hull with high speed fairing block
• Can be flush mounted in keel without using fairing block
• DFF3D operating frequency: 165 kHz
• Built-in motion sensor
• Built in temp sensor
• 1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements - the same elements as an Airmar B164 transducer
• 12M Cables with 10-pin Connector for sounder, 7-pin connector and a pigtail cable for the DFF3D
• Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation

Specifications:

• Mounting Style: Thru-Hull
• Cable Length (Feet): 12m
• Box Dimensions: 7"H x 18"W x 25"L WT: 25.2 lbs
